Power Gear Slide Out Motor
12 RPM 12V DC PARALLEL SHAFT GEARMOTOR 1010000010 & 523432 & 524377 & 368417
Everybody loves RV slide outs! To keep them at their best sometimes RV repair involves replacing a slide out motor.

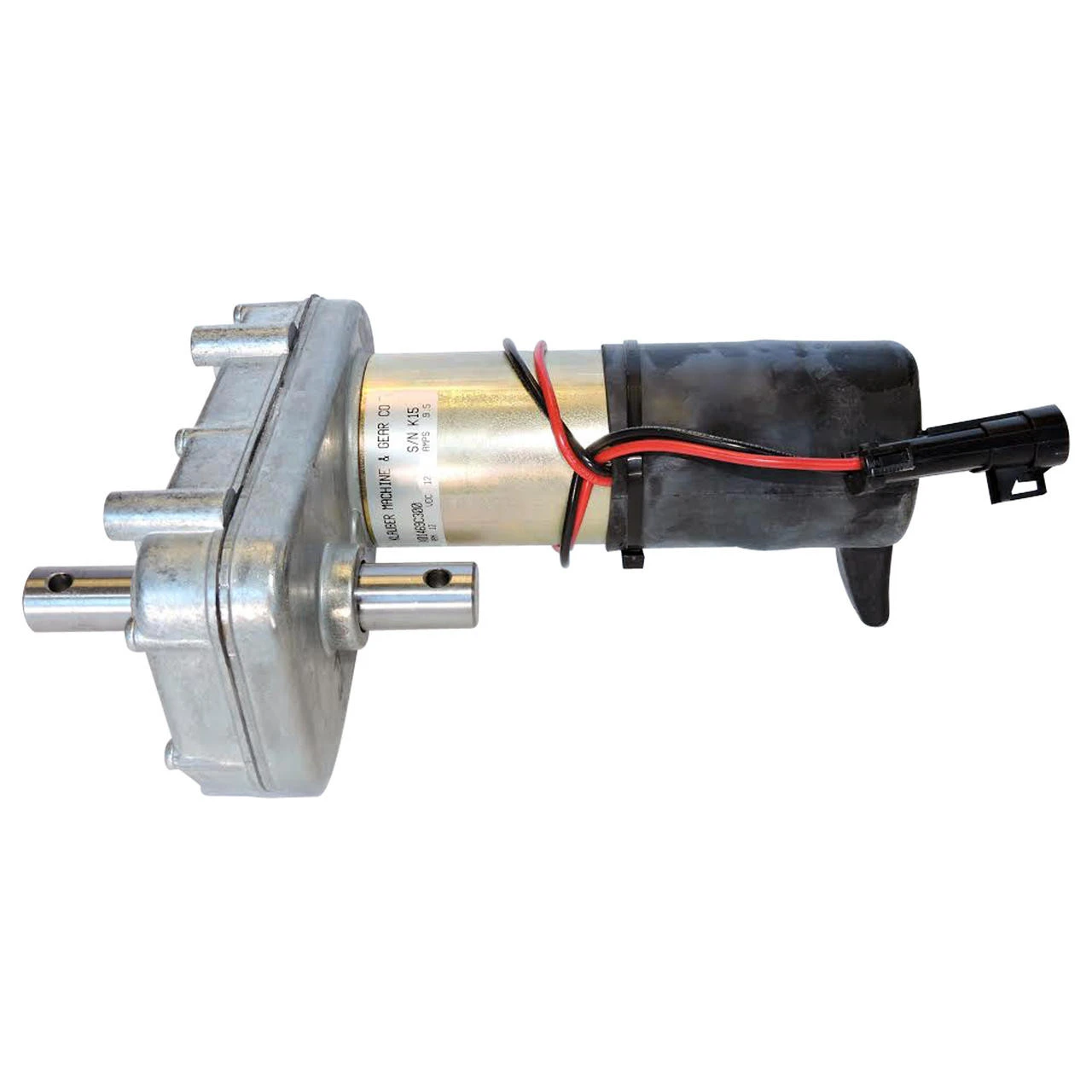

This permanent magnet (PMDC), parallel shaft gear slide out motor is made in the USA. It has a steel motor frame and cast aluminum gear housing and end cap. The motor has a 12 Volt DC rear electro-mechanical brake with a manual release lever.
This brand new slide out motor replaces your worn out Power Gear motor. RV living is easy with a new slide out motor giving you the extra space you need in your 5th wheel or coach.
Speed:
9 RPM at 900 in-lbs, 17 Amps
12 RPM at 500 in-lbs, 9.5 Amps
14 RPM with no load
Other Specifications:
Condition: New
Voltage: 12 V DC
Torque: 900 in-lbs
Holding Torque: 500 in-lbs
Rotation: Reversible
Duty: Intermittent
Dimensions: 4.25 inches long x 6.5 inches wide x 10 inches high
Shaft Diameter: 3/4 inch
Electric Motors may be returned if authorized by Leisure CoachWorks and must be unused/not installed. Accepted returns are subject to a 20% restocking fee
| SKU | X7X5A |
|---|---|
| Width | 6.50 (in) |
| Height | 10.00 (in) |
| Depth | 4.25 (in) |
